Rugged Handheld Industrial Bluetooth 2D Barcode Scanner

The CM-2D810BT is a rugged handheld industrial barcode scanner built for demanding environments. With IP54 protection, a 1.8-meter drop rating, and Bluetooth 5.0 wireless connectivity, it combines durability with flexibility. Its advanced 2D imaging engine ensures fast and accurate reading of 1D and 2D barcodes, making it an ideal solution for warehouse, logistics, retail, and light manufacturing applications. Designed with long battery life, wireless charging, and ergonomic pistol-grip comfort, the CM-2D810BT delivers reliable performance for everyday industrial use

Reliable Industrial-Grade Performance

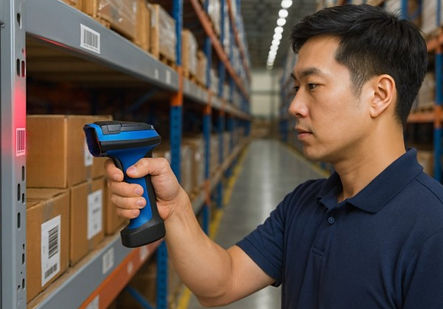

This scanner is designed for light industrial and warehouse environments. With IP54 protection and a 1.8-meter drop resistance, this rugged handheld scanner ensures reliable operation even in challenging conditions. It is ideal for applications such as inventory management, logistics, retail, and light manufacturing.

Advanced 2D Imaging Technology

Equipped with a 1280 x 800 CMOS sensor, the CM-2D810BT delivers fast and accurate scanning of both 1D and 2D barcodes. It easily reads high-density codes down to 3 mil resolution, as well as QR codes, DataMatrix, and PDF417. The wide field of view (56° x 37°) makes it efficient for various barcode types and sizes

Specification

Communication

Bluetooth: Ver. 5.0 Bluetooth Low Energy, HID (Human Interface Device), SPP (Serial Port Emulation)

USB: USB-KB, USB VCP/CDC (Virtual COM Port), HID (Human Interface Device)

2D Imager Optics

Light source: Red LED (aiming) and warm white LED (illumination)

Scan sensor: CMOS area sensor, 1280 x 800 pixels

Scan rate: 120 fps

Imager field of view : Horizontal 56°, Vertical 37°

Min. resolution at pcs 0.9 : 3 mil

Min. pcs value: 20%

Depth of field at Code 39: 50 - 90 mm (3 mil)

Depth of field at EAN13: 30 - 300 mm (13 mil)

Depth of field at QR code: 40 - 60 mm (5 mil)

Depth of field at DataMatrix: 40 - 80 mm (5 mil)

Operation

CPU: 32-bit RISC

RTC: Supports year, month, day, hour, minute, second

Operating Keys Entry options: 1 scan key

Memory : Flash: 244 KB

Durability

Temperature in operation -20°C to 50 °C

Temperature in storage: -40°C to 70 °C

Humidity in operation: 5% - 90% (non-condensing)

Humidity in storage: 5% - 90% (non-condensing)

Ambient light immunity: Sunlight 100,000 lux max.

Drop test: 1.8m drop onto concrete surface

Protection rate: IP54

Supported Symbologies

1D code: JAN/UPC/EAN incl. add on, Codabar/NW-7, Code 39, Code 93, Code 32, Code 128, GS1-128, MSI GS1 Databar, GS1 Databar 14, GS1 Databar Expanded GS1 Expanded Stacked, GS1 Data Bar Limited, GS1 Composite Component A/B/C, Interleaved 2 of 5

2D code: PDF417, Micro PDF417, QR Code, Micro QR Code, Data matrix, Aztec Code, MaxiCode, Dot Code

Power

Rechargeable battery: Lithium Ion 3,350 mAh

Operating time: 26 hrs (Scan 1 time per 5 seconds when fully charged)

Max. charging time: 6 hrs

SuperCapacitor: 1300 Farads

Operating time: 4hrs (Scan 1 time per 5 seconds when fully charged)

Max. charging time: 1.3 hrs

Charge method: Wireless Charging Cradle

Operation Indicators

LED & buzzer, vibration motor

Physical

Dimensions (WxHxD):

Scanner: 66.2mm x 183.2mm x 183.2mm

Cradle: 90mm x 69mm x 198mm

Weight

Scanner: 231g

Cradle: 293g

Regulatory & Safety

CE, FCC, IEC/EN 62471, EN IEC 62368, EN 55032, EN 55035 , TELEC , BSMI
