Invisible UV / IR Slim Barcode Scan engine

Key Characteristics

Scan engine directly supplies power to external add-on light source boards
Light source on/off behavior is synchronized with scan engine operation
No external main board or trigger circuitry required

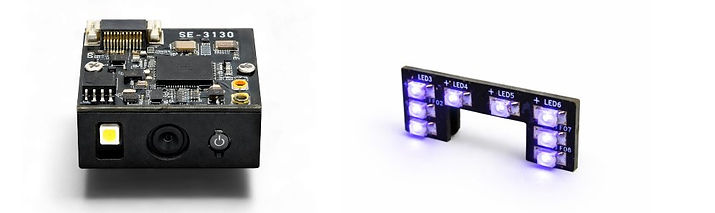

Supports modular add-on IR or UV LED illumination boards
Reduced PCB size, component count, and BOM cost
Simplified system architecture and faster integration

What's the UV/IR Barcode Scan engine?

This is a barcode scan engine architecture specifically designed to directly power and control external add-on illumination boards, such as infrared (IR) or ultraviolet (UV) LED modules.

Unlike conventional designs that require an additional main board to distribute power and manage control signals, CM-2D313 barcode scan engine integrates the light source power supply and on/off control within the scan engine itself.

This allows the external light source to operate in full synchronization with the scan engine without additional trigger circuits or signal routing.

By eliminating the need for a separate main board, the CM-2D313 architecture significantly reduces system complexity, PCB size, and bill of materials (BOM) cost, while simplifying mechanical integration and overall system design.

In most conventional designs, adding a UV LED light source requires an additional main board to supply power and handle trigger signals.This is because typical barcode scan modules are not originally designed with a dedicated interface for add-on light source boards.

As a result, power lines and trigger signals must be routed from the scan engine to the main board, increasing system complexity, PCB size, and component count.The CM-2D313 is designed differently.

From the initial architecture stage, the CM-2D313 integrates dedicated power and control support for external add-on light source boards.This allows UV or infrared LED boards to be connected directly to the scan engine and powered by it, with light on/off behavior automatically synchronized with scan engine operation—without the need for an additional main board.

CM-2D313 vs Traditional Architecture

Traditional Design

Requires a separate main board
Main board supplies power to scan engine and light source
Additional trigger signal needed for light control
Larger PCB size and higher component count

CM-2D313 Architecture

Scan engine acts as power and control hub
External light source powered directly by scan engine
Automatic light synchronization
Compact system design with lower cost

The add-on UV LED board and IR board are optional.Please clearly specify your selection when placing the order.

About Invisible Barcodes

UV Barcode vs. IR Barcode Comparison

While both UV and IR barcodes serve invisible marking purposes, they differ in durability and material compatibility.

UV Barcode Characteristics

Produces a fluorescent effect under UV illumination
Fluorescence intensity may decrease over time
Prolonged sunlight or UV exposure can accelerate fading
Not suitable for reflective surfaces, such as laser labels, due to strong light reflection and noise

IR Barcode Characteristics

No fluorescence degradation over time
More stable under long-term use and environmental exposure
Suitable for reflective materials, including laser labels
Requires an IR-capable imaging sensor for detection

Shared Limitations

Both UV and IR barcodes are not suitable for uneven or textured surfaces
Rough or embossed materials can distort barcode geometry
Surface height variations may deform module proportions, leading to unreliable decoding or read failure

UV vs. IR Barcode Imaging Characteristics

UV barcodes are typically rendered as inverted images on CMOS sensors, appearing as white bars on a dark background due to UV fluorescence.
In contrast, IR barcodes are usually captured as normal images, showing dark bars on a light background.

Under UV LED illumination, UV barcodes are visually observable.
In contrast, IR barcodes remain invisible to the human eye even under infrared light, but can be reliably detected and decoded by IR barcode scanners.

Materials for Invisible Barcode Printing

recommended materials for UV barcode printing

📘 Invisible Barcode Printing Material Guidelines

Invisible barcodes achieve the most reliable decoding performance when printed on smooth, surfaces. Proper material selection plays a critical role in ensuring stable UV reflection and consistent barcode contrast under UV illumination ( same as IR ) .

How to Buy CM-2D313 Barcode Scanner Module

If you would like to purchase UV barcode scanner samples for testing or internal verification, please follow the steps below.

Typical sample quantity is 1–2 units per order.

Step 1: Send Your Shipping Information by Email

Please email us the following details:

Recipient name
Full shipping address (including postal code)
Contact phone number
Sample quantity (1 or 2 pcs)

Step 2: Receive Shipping Cost Quotation

After receiving your information, we will calculate and send you the shipping cost based on your destination and quantity.

Step 3: Confirm the Sample Order

Once the shipping cost is confirmed, we will issue a sample order confirmation for your approval.

Step 4: Payment via PayPal

After confirmation, we will provide a Proforma Invoice (PI).
Payment can be made via PayPal, which is recommended for small-amount sample orders.

Step 5: Shipment Arrangement

The sample order will be shipped within 3 business days after payment is received.

Here is a 12 seconds demo video to show the UV barcode reading

Specification

Size / Weight : 26 (L) x 20(W) x 13(H) mm | 5g

w/o add-on barod

Interface : USB HID/ USB COM / RS232
Ambient Light : 0 to 100,000 lux ( total darkness to bright sunlight )
Sensor : 640 x 480 ( H x V ) pixels
Resolution : 4 mil (Code 39), 6.6 mil (DataMatrix)
Frame Rate : 120 fps
PCS : up to 0.3
Cable : FPC, 12 pin 0.5 pitch
Light Source : Aiming 610nm red LED + Illumination 6000-6500k
Add-on UV LED : 365nM
Power consumption : 260mA ( operation ) , 88mA ( standby )
Input Voltage : 3.3V~5V
Caculated MTBF : 375,000 hours

Support barcode :

1D : UPC-A, UPC-E, EAN-13, EAN-8, Code 128, GS1-128, Code-39, Code-32, Code-93, Pharmacode Codabar/NW7, MSI, Interleaved 2 of 5, GS1 DataBar-14, GS1 DataBar Stacked, GS1 DataBar Limited GS1 DataBar Expanded, GS1 DataBar Expanded Stacked, Composite Component A / B /

2D Stacked : PDF 417, MicroPDF 417, QR Code, Micro QR Code, Dara Matrix, Aztec, Maxi Code, Dot Code
